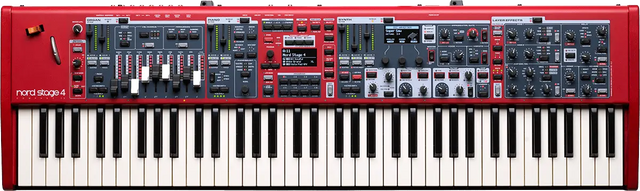

NORD STAGE 4 COMPACT

Kenelle?

Tämä malli soveltuu liikkuville muusikoille, jotka tarvitsevat kompaktin ja kevyen, mutta silti monipuolisen ja korkealaatuisen kosketinsoittimen keikoille. Ideaalinen myös kotistudioon, jossa tila on rajallinen.

Tekniset tiedot

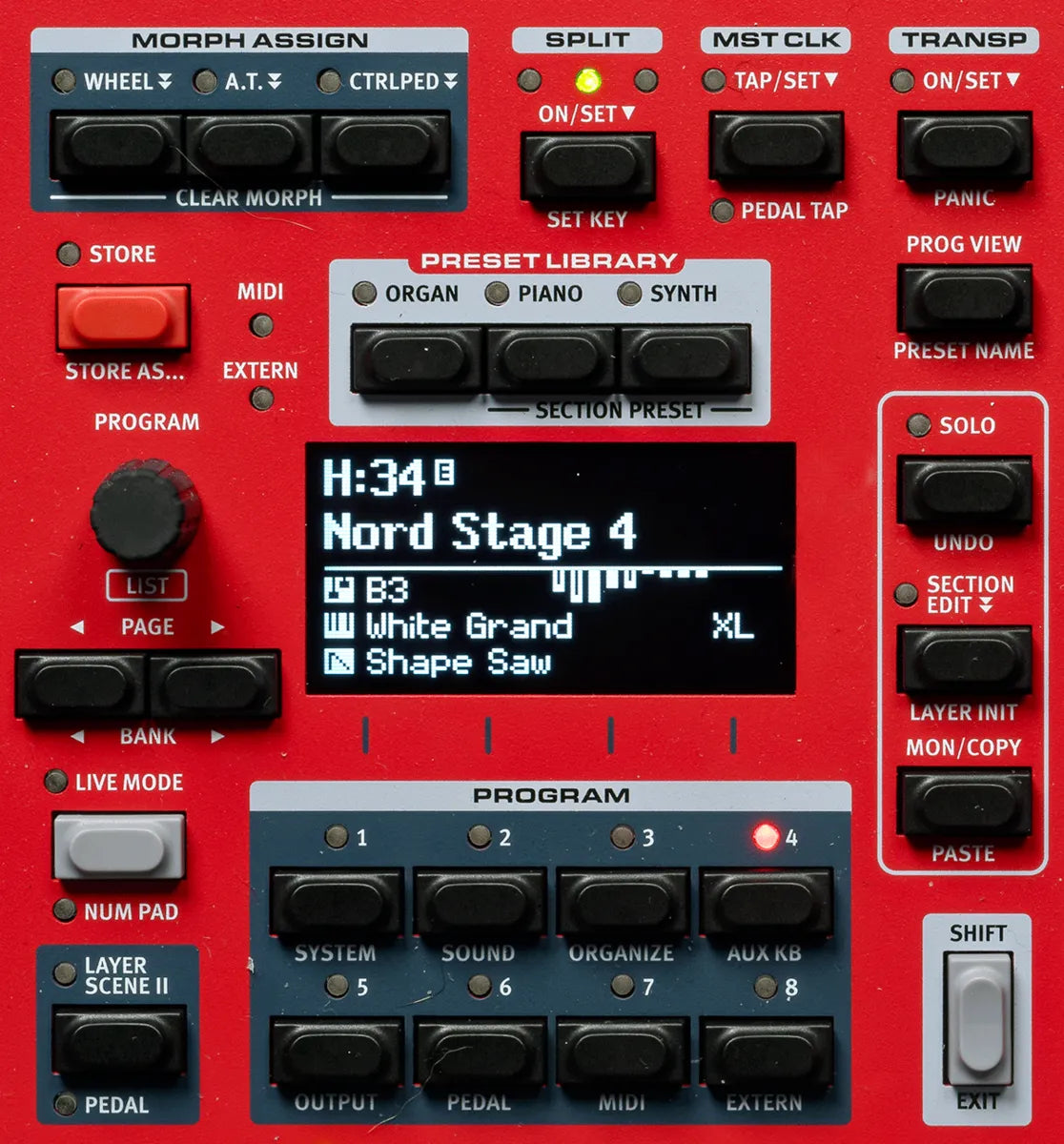

GENERAL

Master Level Control

Wooden Pitch Stick

Modulation Wheel

512 Programs - 8 Banks with 8 Pages each. Each Page has 8 Program locations

Preset Library with Organ, Piano and Synth Presets including effects. 2x64 Organ Preset locations, 2x64 Piano Preset locations, 8x64 Synth Preset locations.

8 Live Programs

2 Individual Layer Scene Setups

3 Morph sources: Modulation Wheel (also controllable by Swell pedal), Control Pedal, Aftertouch

Stereo and Mono output routing options

Programmable Transpose +/- 6 semitones

Master Clock functionality with manual, external and tap-tempo rate control

Internal and MIDI clock source

MIDI over USB functionality

Level control

Aftertouch

Up to 3 Split Points (4 Keyboard Zones) with visual LED indication between zones

3 Split Point width (crossfade) options: Lrg, Sml or Off

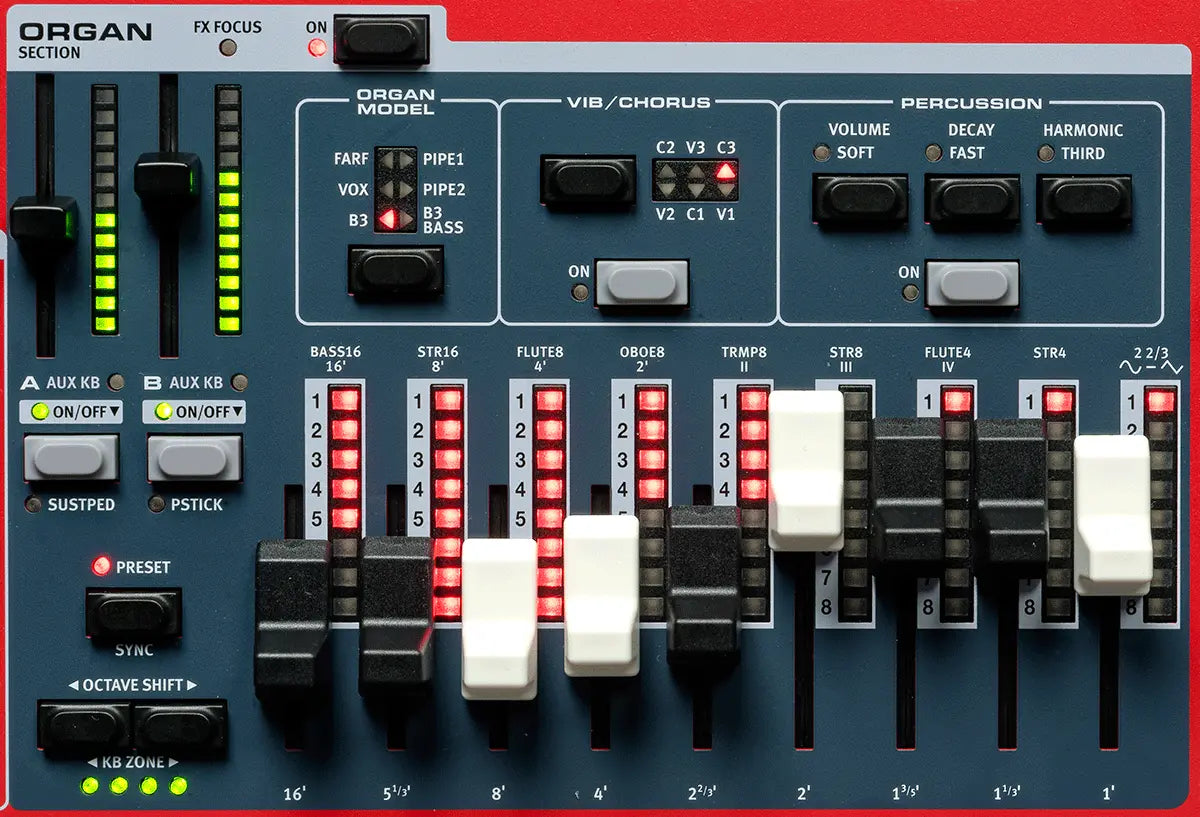

ORGAN SECTION

Nord C2D B3 Tone wheel Organ simulation

Vox Continental and Farfisa models

2 Digital Pipe Organ models

B3 Bass mode

Physical Drawbars with LED graphs

Preset or Drawbar Live mode

Percussion controls

Vibrato / Chorus control

2 Layers (2-Part Multitimbral)

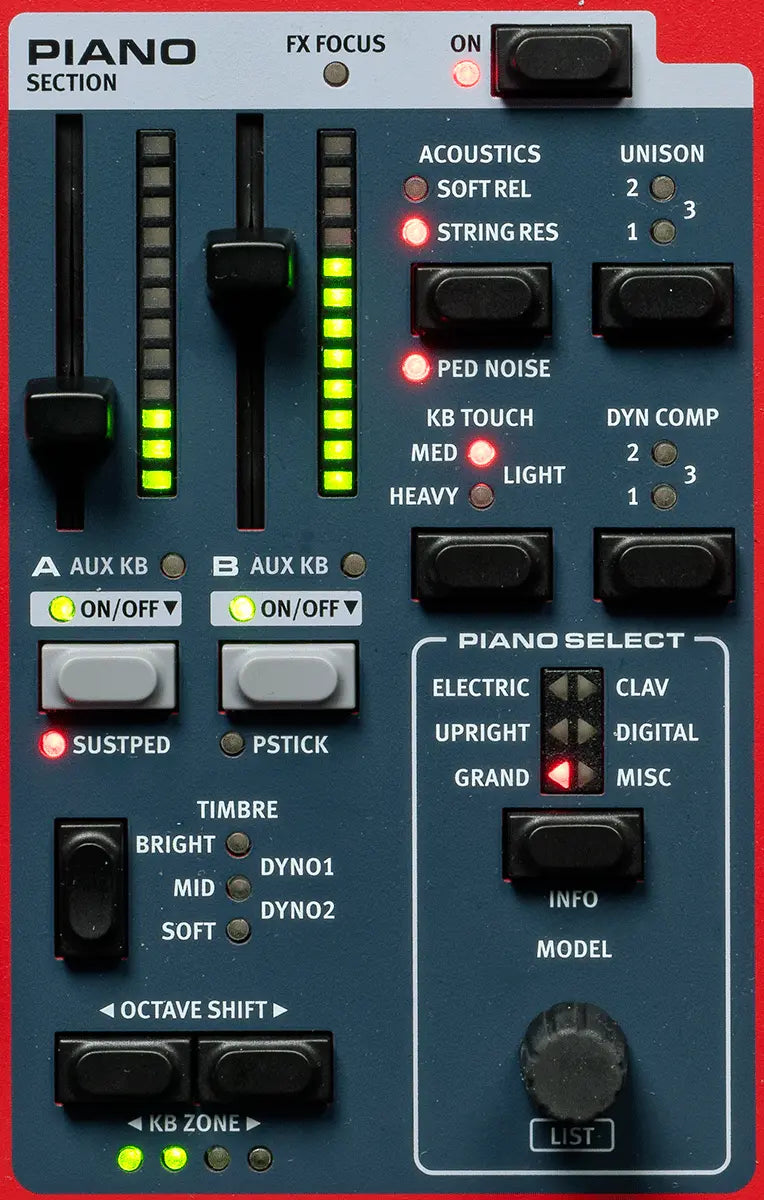

PIANO SECTION

2 GB memory for Piano sounds

All sounds can be replaced using Nord Sound Manager (Mac/Win)

120 Voice Polyphony

Categories: Grand, Upright, Electric, Digital, Layer and Clav/Harpsichord

3 Selectable Keyboard Touch Curves (Heavy, Medium, Light)

Piano Timbre controls with custom settings for Electric Pianos and Clavinet

String Resonance for acoustic Grand Pianos and Uprights

Selectable Soft Piano Release

Pedal Noise when used with Nord Triple Pedal 1, Nord Triple Pedal 2 or Nord Sustain Pedal 2 on selected acoustic and electric pianos

Dynamic Compression

Unison functionality

2 Layers (2-Part Multitimbral)

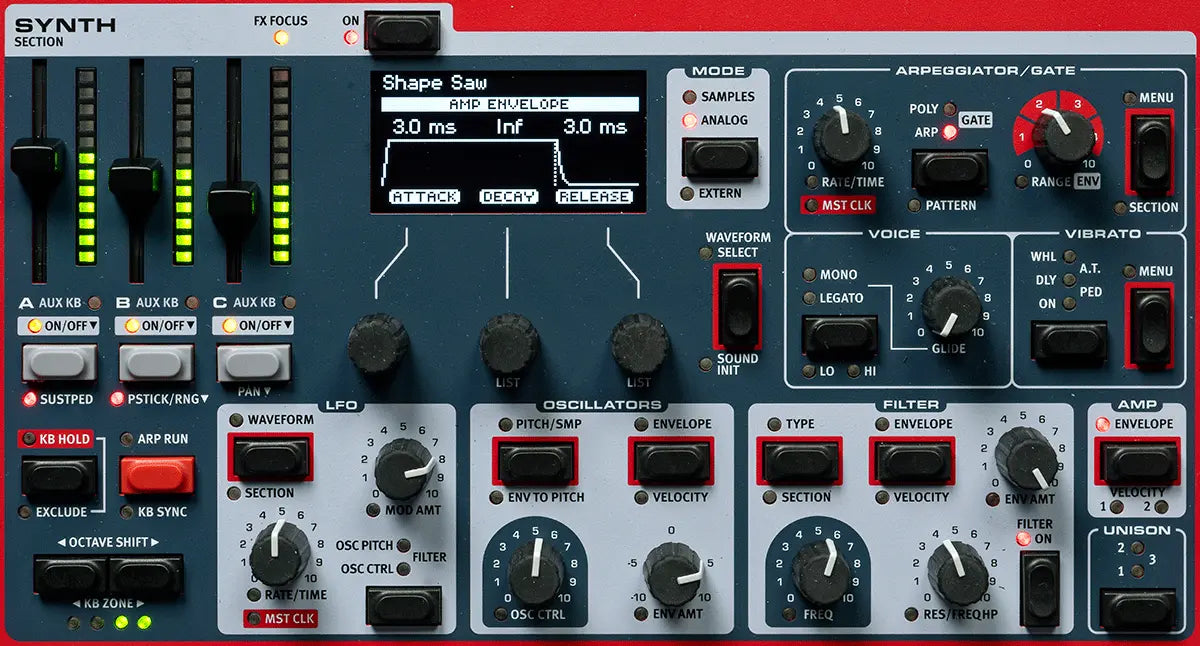

SYNTH SECTION

Nord Wave 2 Synth Engine with Sample Playback

Dedicated OLED Display for Waveform/Sample selection and parameter editing

1 GB Memory for Nord Sample Library

All samples can be replaced using Nord Sound Manager (Mac/Win)

46 Voice polyphony

Oscillator Types: Analog (incl. Super, Noise and Misc waveforms), Digital Waves, FM and Sample

Analog Waveform options: Pure, Shape, Shape Sine, Multi, Super, Sync, Bell, Misc (Noise)

Classic Transistor Ladder Filter (LP M), 12 & 24 dB Low Pass, High Pass, Band Pass and combined Low Pass/Band Pass (LP+BP) filter

Filter Drive: Off, 1, 2 and 3

Filter Tracking: Off, 1/3, 2/3 and Full

3 Unison modes

Vibrato modes controllable from Mod Wheel, Aftertouch and pedal.

Filter envelope (Attack, Decay, Sustain) with Velocity control

Amplitude envelope (Attack, Decay, Sustain) with Velocity control

Oscillator envelope (Attack, Decay, Sustain) with Velocity control

LFO with 5 waveforms/modes: Square, Triangle, Ramp Dn, Ramp Up and Sample & Hold

Advanced Arpeggiator with Arp, Polyphonic and Gate modes

Arpeggiator Patterns for all modes, with Accent and Pan options

LFO and Arpeggiator synchronizable to Master Clock

3 Layers (3-Part Multitimbral)

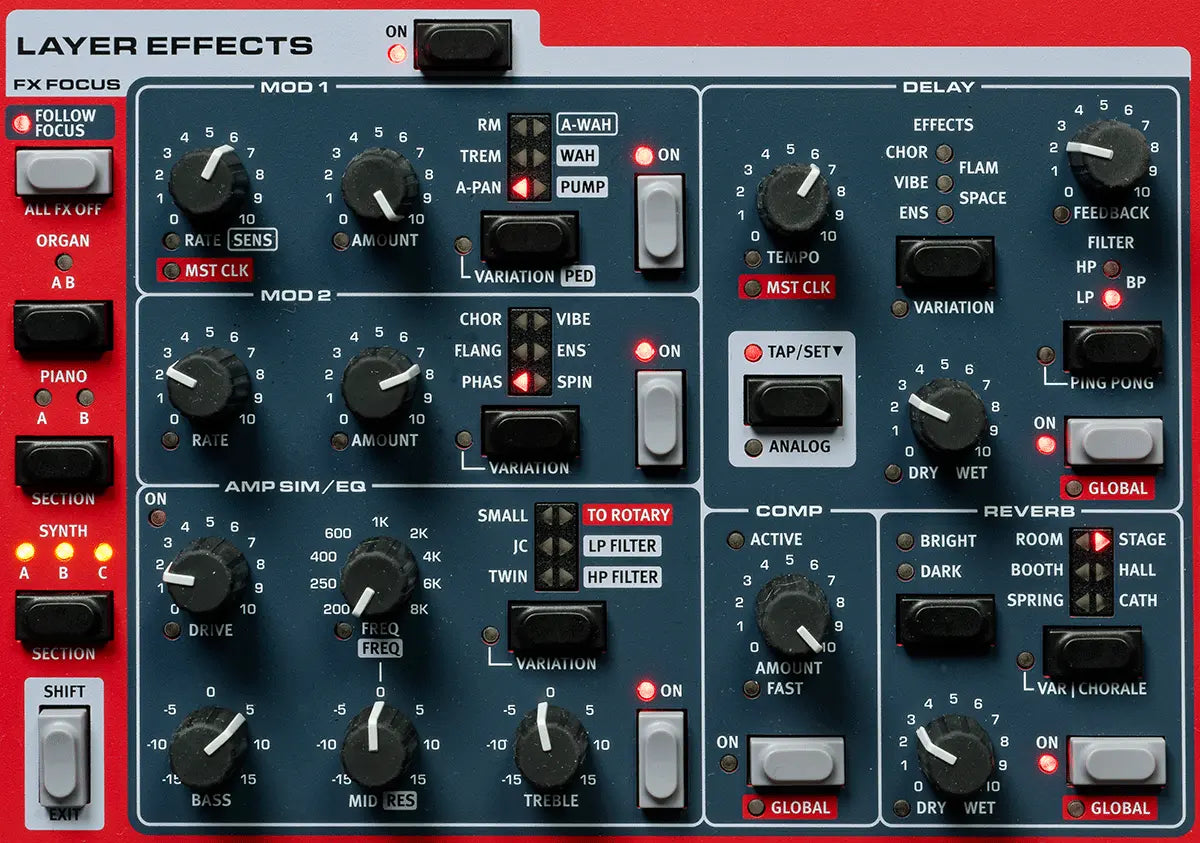

EFFECTS

Mod 1: Tremolo, Auto Pan, Ring Modulator, Wah-Wah, Auto-Wah, Pump (Sidechain modulation). Variation for each effect

Mod 2: Phaser, Flanger, Vibe, Chorus, Ensemble, Spin. Variation for each effect

Delay with Tempo, Feedback and Mix (Dry/Wet) controls, Ping Pong (stereo taps), Tap-Tempo, Feedback Filter (HP/LP/BP), Feedback Effects with Variations and panel selectable Analog mode.

3 types of Amp/Speaker simulations, Twin, JC and Small. Variation for each model

Filter Mode (HP24/LP24) with Cut-off, Resonance and Mix controls

Tube amp simulation with adjustable overdrive

3-band Equalizer with sweepable mid. EQ ranges: 100 Hz, 200 Hz - 8 kHz and 4 kHz

Rotary Speaker: selectable speed (Stop, Slow and Fast) and separate overdrive

Effect rates/tempo can be synchronized to the Master Clock

Compressor with Fast Mode

Reverb: 6 algorithms (Spring, Booth, Room, Stage, Hall and Cathedral) with Dark/Bright modes and Variation/Chorale options

KEYBOARD

Nord Stage 4 88: 88-key Triple Sensor Hammer Action keyboard with Aftertouch. Range: A-C

Nord Stage 4 73: 73-key Triple Sensor Hammer Action keyboard with Aftertouch. Range: E-E

Nord Stage 4 Compact: 73-key Triple Sensor Semi Weighted Waterfall keyboard with Aftertouch. Range: E-E

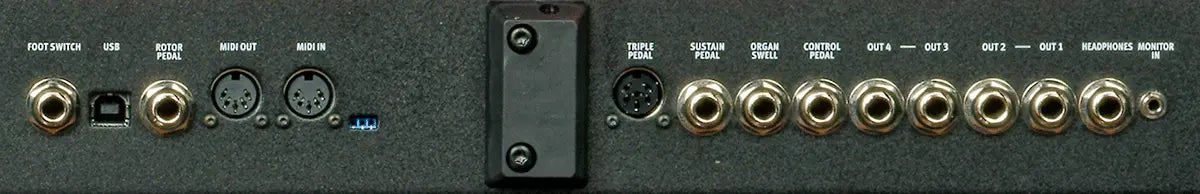

CONNECTIONS

4 Assignable Audio Outputs - ¼", 6,35 mm jacks, unbalanced

Stereo Headphone output - ¼", 6,35 mm stereo jack

1 Monitor input - 1/8", 3,5 mm stereo jack

Sustain Pedal - ¼", 6,35 mm jack. Compatible with Nord Sustain Pedal 2 (continuous sensor), Nord Triple Pedal 1 and switch type pedals

Triple Pedal - 5 pin DIN connector. Compatible with Nord Triple Pedal 2

Rotor Pedal - ¼", 6,35 mm jack. Use a momentary pedal or a switch type pedal.

Organ Swell Pedal - ¼", 6,35 mm TRS stereo jack.

Control Pedal - ¼", 6,35 mm TRS stereo jack.

Foot Switch input - ¼", 6,35 mm jack. Use a momentary two-button pedal or a single switch type pedal.

MIDI In - 5 pin DIN connectors

MIDI Out - 5 pin DIN connectors

USB - type B connector for USB MIDI, Software Update and Sound Transfer

Power Cord with IEC C14 connector

Nord Stage 2 Connections

INCLUDED ACCESSORIES

User Manual

Power cord

USB cord

OPTIONAL ACCESSORIES

Nord Triple Pedal 2

Nord Single Pedal 2

Nord Sustain Pedal 1

Nord Triple Pedal 1

Nord Piano Monitor

Nord Keyboard Stand EX

Nord Soft Case

Nord Music Stand EX

Nord Half-Moon Switch (for Compact model)

Dust Cover

DIMENSIONS

Nord Stage 4 88: 1282 mm (50.5"), 121 mm (4.7"), 349 mm (13.7")

Nord Stage 4 73: 1069 mm (42"), 121 mm (4.7"), 349 mm (13.7")

Nord Stage 4 Compact: 1066 mm (42"), 104 mm (4,1"), 322 mm (12.7")

WEIGHT

Nord Stage 4 88: 19.6 kg (43.2 lb)

Nord Stage 4 73: 16.7 kg (36.8 lb)

Nord Stage 4 Compact: 10.4 kg (22.9 lb)

Specifications subject to change without notice. *Steinway, Wurlitzer, Hohner, Clavinet, Farfisa and Vox are trademarks of their respective owners and are not affiliated or associated with Clavia. These trademarks are mentioned here as a reference to a sound only. Leslie is mentioned to describe a connector standard.
